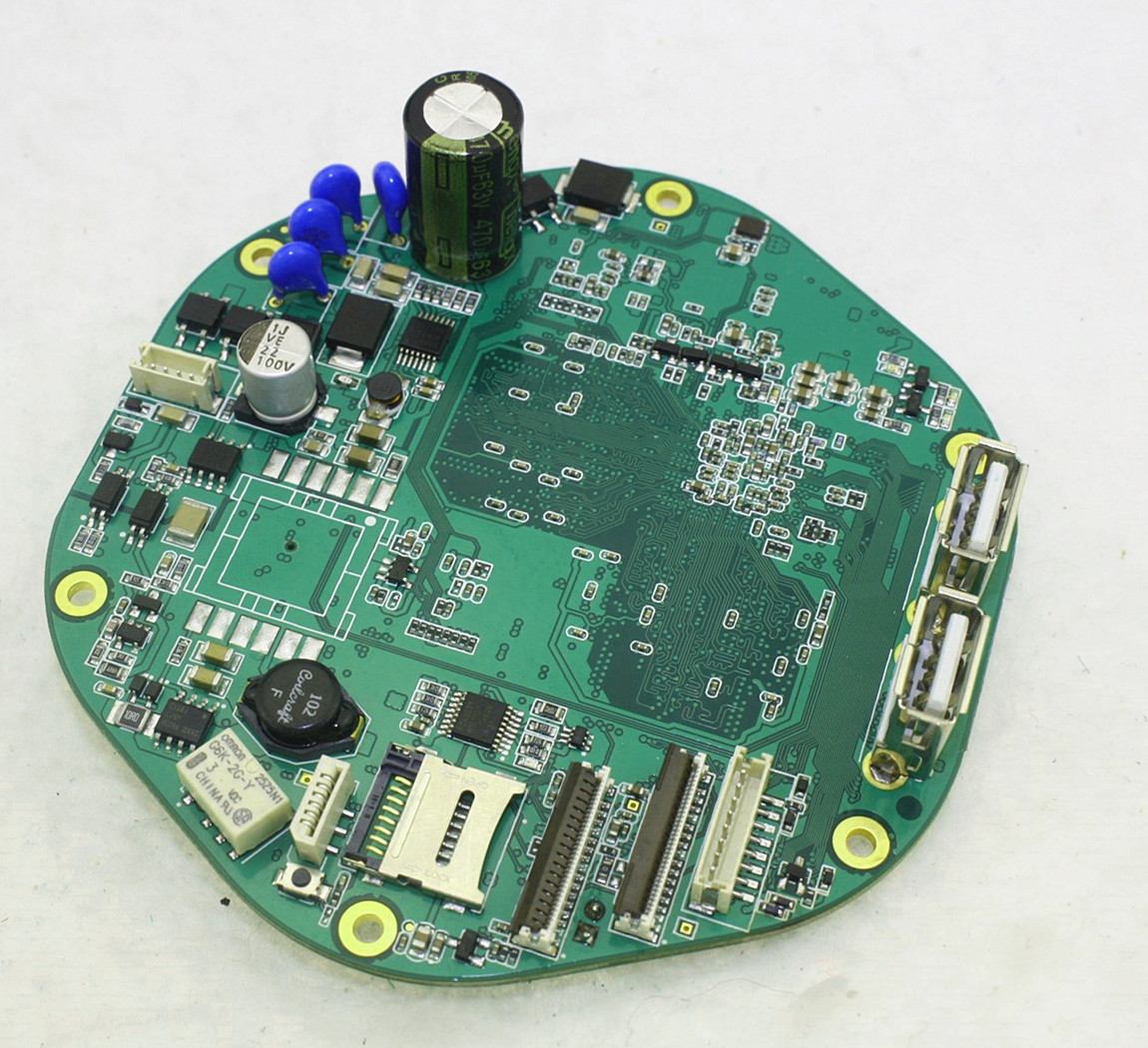

Industrial control Aluminum PCB Assembly with functional test OEM ODM Service

Industrial control Aluminum PCB Assembly with functional test OEM ODM ServicePCBA PROCESSING CAPABILITYTurnkey PCBAPCB+components sourcing+assembly+packageAssembly detailsSMT and Thru-hole, ISO SMT an

Industrial control Aluminum PCB Assembly with functional test OEM ODM Service


Industrial control Aluminum PCB Assembly with functional test OEM ODM Service


PCBA PROCESSING CAPABILITY
Turnkey PCBA
PCB+components sourcing+assembly+package
Assembly details
SMT and Thru-hole, ISO SMT and DIP lines
Lead Time
Prototype: 15 work days. Mass order: 20~25 work days
Testing on products
Flying Probe Test, X-ray Inspection, AOI Test, Functional test
Quantity
Min quantity: 1pcs. Prototype, small order, mass order, all OK
Files needed
PCB: Gerber files(CAM, PCB, PCBDOC)
Components: Bill of Materials(BOM list)
Assembly: Pick-N-Place file
PCB Panel Size
Min size: 0.25*0.25 inches(6*6mm)
Max size: 20*20 inches(500*500mm)
PCB Solder Type
Water Soluble Solder Paste, RoHS lead free
Components details
Passive Down to 0201 size
BGA and VFBGA
Leadless Chip Carriers/CSP
Double-sided SMT Assembly
Fine Pitch to 0.8mils
BGA Repair and Reball
Part Removal and Replacement
Component package
Cut Tape,Tube,Reels,Loose Parts
