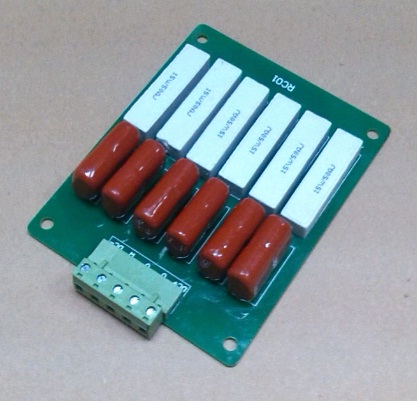

RC01 resistance-capacitance absorption module

RC01 resistance-capacitance absorption moduleThis module is an RC resistance-capacitance absorption circuit for the rectifier trigger board. There are 6 absorption resistors and capacitors. Different

This module is an RC resistance-capacitance absorption circuit for the rectifier trigger board. There are 6 absorption resistors and capacitors. Different parameters can be configured according to the SCR model and operating environment. The default parameters are resistance 50 ohms 10W, capacitance 0.68uF2200V, overall dimensions: length 130× Width 100 × height 20mm.
