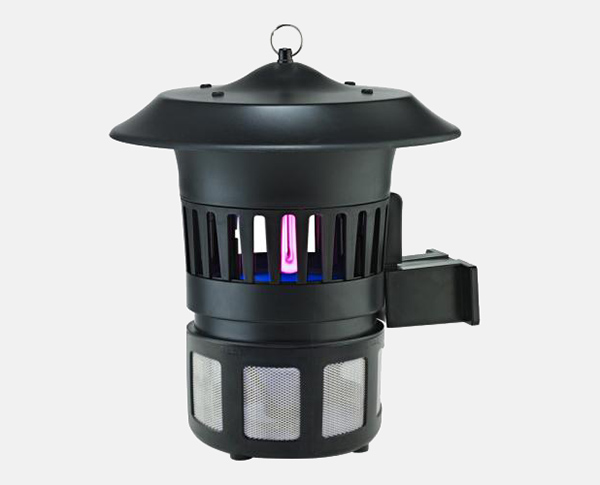

Development of mosquito repellent lamp scheme

Mosquito repellent lamp, the light is yellow, filters out ultraviolet and infrared rays, and will not cause any harm to human body. When entomologists study the physiological characteristics of mosquitoes, they find that mosquitoes (and many insects, including moths) are particularly sensitive to and like some light and dislike others. According to this principle, researchers have developed a special light source material that mosquitoes hate, which can drive mosquitoes away.

PCB structure description of mosquito repellent lamp

1. The PCB structure diagram is fully compatible with the male mold shell in the market, and the PCB structure can also be customized according to customer requirements.

2. 220V mains power is used.

3. The main control MCU is in sop8 package.
