Electric toothbrush motor core scheme

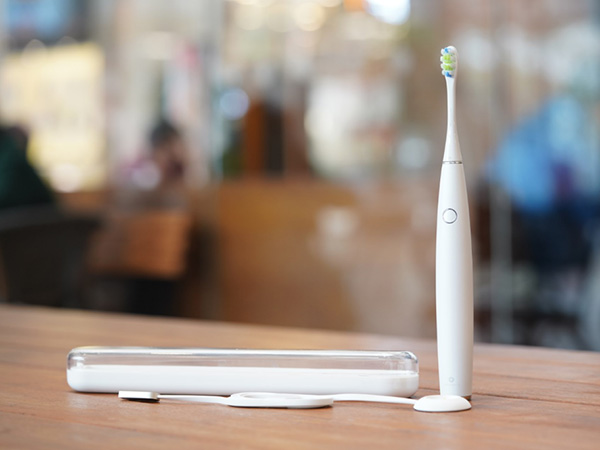

Electric toothbrush is a kind of toothbrush invented by Philippe-Guy Woog. Through the rapid rotation or vibration of the motor core, the brush head generates a high frequency vibration. It instantly breaks the toothpaste into tiny foam and deeply cleans the teeth. At the same time, the tremor of the brush can speed up the blood circulation of the mouth, and has a massage effect on the gingival tissue. Electric toothbrush has set off a revolution in the field of oral health care abroad.

PCB structure description of electric toothbrush

1. The PCB structure diagram is fully compatible with the male mold shell in the market, and the PCB structure can also be customized according to customer requirements.

2. Use 18650 rechargeable battery for a long life of one year.

3. The main control MCU is sop8 encapsulated, with long standby time and low power consumption. It uses 18650 rechargeable battery and has a long life of one year.
