UV disinfection box control board, UV lamp disinfection box circuit board, disinfection lamp circuit board, disinfection box PCBA program development

UV disinfection box control board, UV lamp disinfection box circuit board, disinfection lamp circuit board, disinfection box PCBA program development

The control panel of UV ultraviolet disinfection box is mainly used on the disinfection box. UV light is used for disinfection. UV light is ultraviolet light. The wavelength range of ultraviolet light is 10 ~ 400nm, which is an electromagnetic wave between X-ray and visible light. Ultraviolet rays can sterilize quickly and are suitable for sterilization and disinfection of personal items such as masks, toothbrushes, mobile phones, jewelry, and glasses.

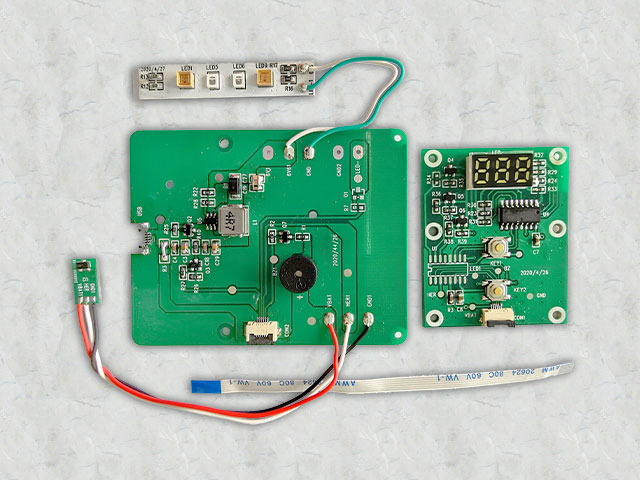

The main features of the UV disinfection box control panel developed by Huilian Huaxin are as follows:

1. The 3-digit digital tube displays the sterilization time;

2. Cover opening detection (one-way Hall switch detection);

3. Two touch switches: KEY1 mode selection; KEY2 power button;

4. Two 3535 packaged UVC lamp beads sterilize;

5. Two 2835 packaged purple ambient lights;

6. Buzzer alarms;

7. MICRO-USB power supply.

Custom Development:

* Provide customers with technical support such as debugging and calibration

* According to customer requirements, provide the master chip that has been burned

* PCBA can be customized according to customer requirements
