Waterproof digital display car electric car voltmeter, DC battery battery, 48V60v72V car thermometerThis table is easy to operate, there is no additional paper manual, please check the detailed operat
Waterproof digital display car electric car voltmeter, DC battery battery, 48V60v72V car thermometer

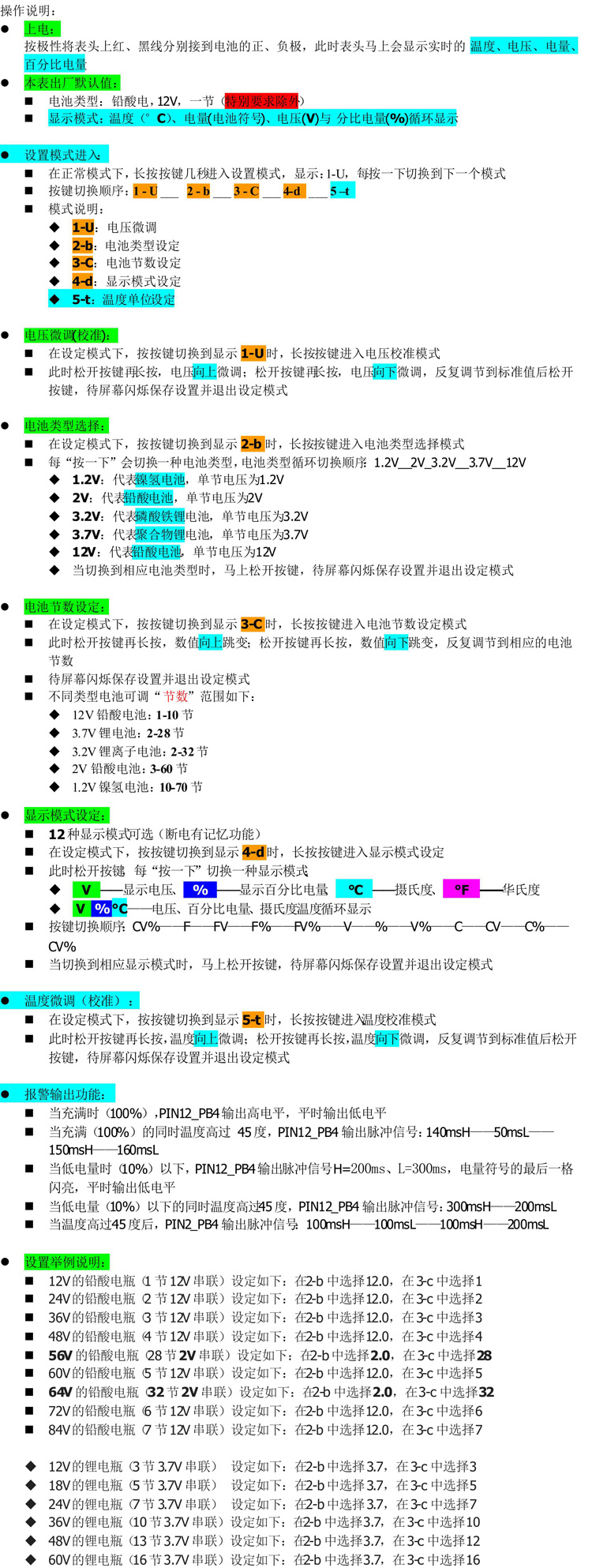

This table is easy to operate, there is no additional paper manual, please check the detailed operation instructions below the webpage, if you have any questions, please contact customer service.
If the customer does not specifically explain, the lithium battery in the option refers to: 3.7V polymer battery
Regarding the power meter option, in order to facilitate the general use of all buyers, you will have your own battery matching settings after you get it.
If the battery type and cell number (string number) are set incorrectly, the battery level and percentage battery level display will be inaccurate. Please set it correctly.......
This watch is not suitable to be installed on a circuit with a xenon lamp. When the xenon lamp is turned on, there will be a high voltage of several thousand volts, which may directly burn the meter head. If it must be installed, it cannot be installed on the same circuit. Keep your head away from the xenon lamp
The pictures taken on the Internet are real pictures, and the display effect is very beautiful. It is not very clear under direct sunlight during the day. This is a normal phenomenon (no matter how bright the product is, it is not bright enough)
The electric quantity and the percentage electric quantity are designed based on the principle of the battery voltage test method. The electric quantity changes with the voltage. During the use of electric vehicles or other equipment, the percentage will change, and the voltage will also change. This is normal and not fixed. .
The temperature probe is shipped by default-air probe, can not be immersed in water for a long time

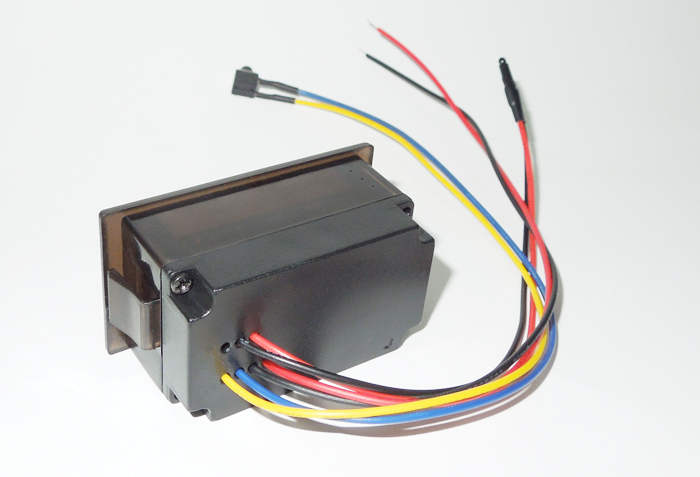

温度空气探头——后视图：（就是说表头防水，温度探头不防水，探头不能长时间放水里）

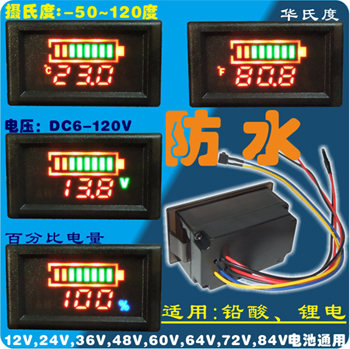

循环显示效果图：电压、百分比电量；也可以设置成“只”显示温度、电压或百分比电量，有“12种“显示模式可选

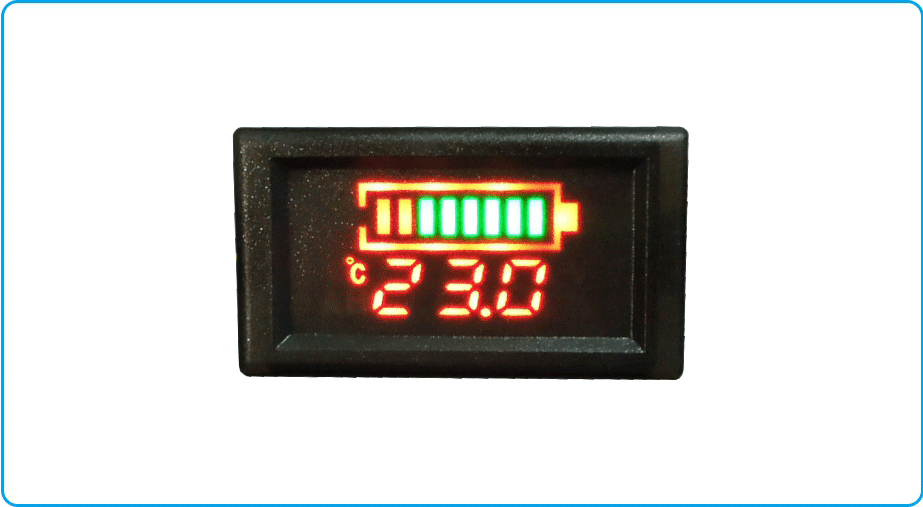

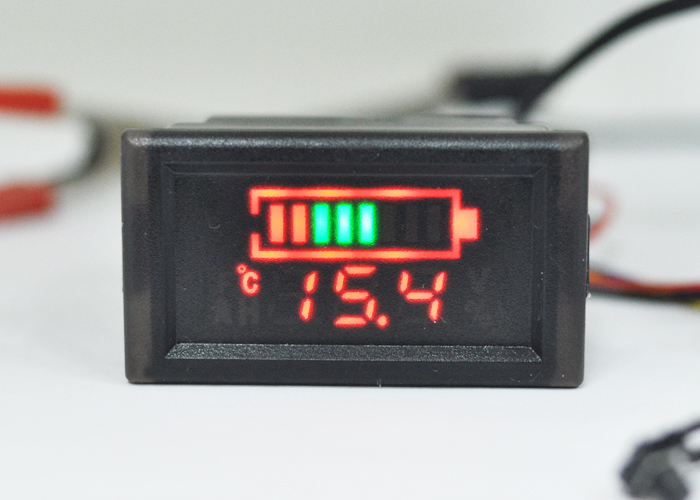

循环显示效果图：摄氏度、电压、百分比电量显示；

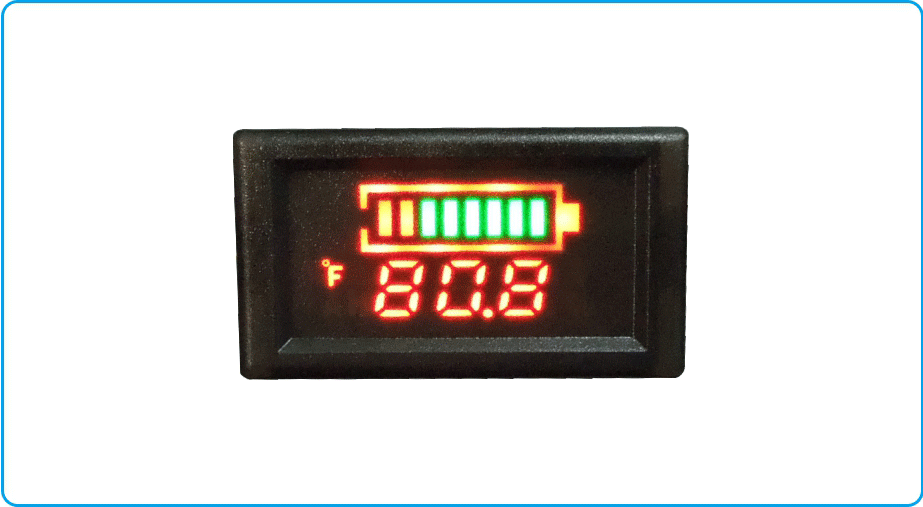

循环显示效果图：华氏度、电压、百分比电量显示
Features:
This watch can set the battery type by pressing the button: lead-acid battery, lithium battery, Ni-MH battery, and the number of battery strings (the number of batteries connected in series)
This watch is suitable for: 12V, 24V, 36V, 48V, 56V, 60V, 64V, 72V, 84V battery car, electric car, battery pack, balance car, inverter, electric forklift, sightseeing car, electric car, car battery, battery power It can be used on mobile devices, etc., and can also be used for other voltage and power testing purposes
This meter can test and display real-time temperature, voltage, power, and percentage power
"12" display modes are optional:
The default is: C V% loop display
C V %——F——F V——F %——F V %——V——%——V %——C——C V——C %——C V%
C: represents the temperature in degrees Celsius; V: represents the voltage; %: represents the percentage of electricity; F: represents the temperature in degrees Fahrenheit
Display mode has memory function when power off
Two-wire system, wide power supply voltage, wide test voltage: DC6-120V, simple and convenient wiring
With reverse connection protection function, reverse connection will not burn
High and low battery flashing alarm reminder function, high temperature alarm,
LED color display, high-end atmosphere

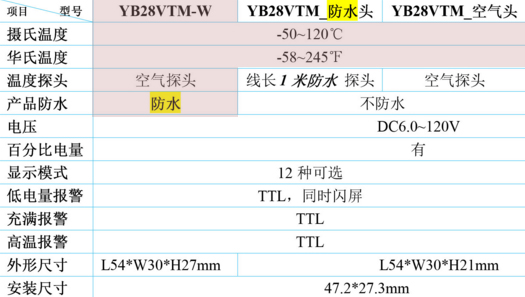

Technical Parameters:
Power supply voltage: DC6-120V (wide range), note: the highest input voltage cannot exceed 120V, otherwise there is a danger of burning
Test voltage: DC6~120V (decimal point moves automatically)
Minimum resolution when below 100V: 0.1V
Minimum resolution when above 100V: 1V
Voltage measurement accuracy: 1% (±2 words)
Temperature test range:
-The minimum resolution of 9.9 to 99.9 degrees is: 0.1 degrees
The minimum resolution of other ranges is: 1 degree
-The minimum resolution of 9.9 to 99.9 degrees is: 0.1 degrees
The minimum resolution of other ranges is: 1 degree
Celsius: -50 ~ +120°C (decimal point moves automatically)
Fahrenheit: -58~245°F (decimal point moves automatically)
Temperature type: NTC
Temperature "air probe" cable length: >120mm
Battery resolution: 1%
Working current: <20mA
Display mode: LED color screen
Dimensions: L54*W30*H27mm
Installation opening: 47.2*27.3mm
Measuring rate: ≥500mS/time
Power supply, key switch lead length: >150mm
Extreme working conditions:
Minimum supply voltage: +6 V
Maximum supply voltage: +120 V
Working temperature: -10～+55
Working humidity: 10～80% (no condensation)
Working pressure: 80～106kPa
Sunlight exposure: no direct exposure
